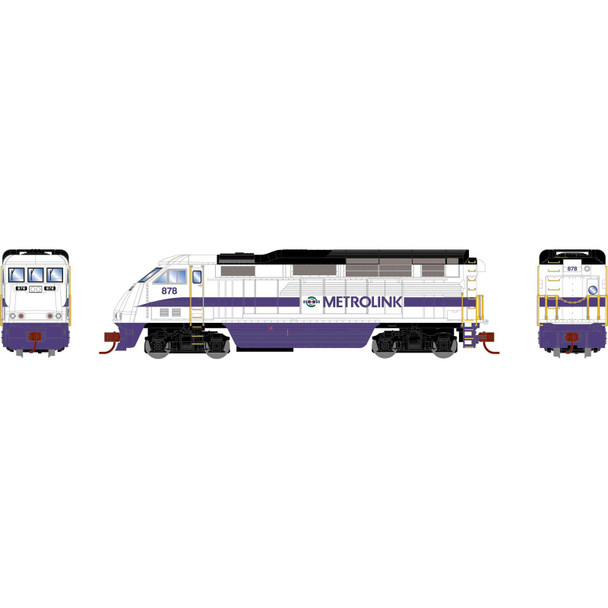

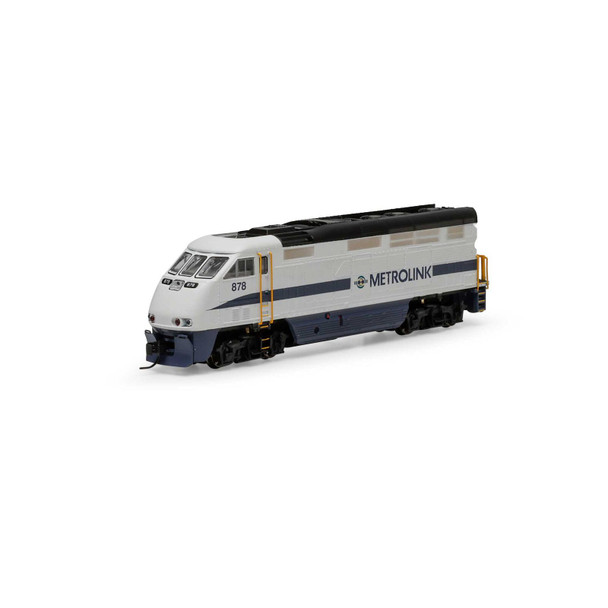

Athearn 15306 - EMD F59PHI DC Silent Metrolink (SCAX) 878 - N Scale

METROLINK  FEATURES:

Metrolink is a commuter railroad in southern California, operating a 534 mile network which currently consists of seven lines. Metrolink 874-881 were delivered in 1994. The units feature decorative corrugated panels on their sides. The units were in service as late as 2019, with 874 still wearing its as-delivered livery.

LOCOMOTIVE FEATURES:

• Fully-assembled and ready-to-run
• LED Lighting for realistic appearance
• Non-sound locomotives are DCC ready
• See through cab windows
• McHenry^® operating scale knuckle couplers
• Bi-directional constant lighting so headlight brightness remains consistent
• All-wheel drive with precision gears for smooth and quiet operation
• Heavy die-cast frame for greater traction and pulling power
• All-wheel electrical pickup provides reliable current flow
• 5-pole skew wound motor with precision-machined flywheels and multi-link drive train for optimal operation
• Multi-link drive train for trouble free operation
• Operates on Code 55 and 80 rail
• Painted and printed for realistic decoration
• Fully-assembled and ready-to-run out of the box
• Highly detailed, injection molded body
• Multiple road numbers
• Minimum radius: 9 3/4"

SOUND EQUPPED MODELS ALSO FEATURE

• Onboard DCC decoder with SoundTraxx Tsunami2 sound
• Sound units operate in both DC and DCC
• Full DCC functions available when operated in DCC mode
• Engine, horn, and bell sounds work in DC
• All functions NMRA compatible in DCC mode
• Excellent Slow speed control
• Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
• Many functions can be altered via Configuration Value (CV) changes

PROTOTYPE SPECIFIC INFORMATION

The EMD F59PHI is a high speed locomotive produced by Electro-Motive Division (EMD) from 1994 to 2001. It features an isolated cab, lightweight body, and a streamlined shape, features that were absent on the original commuter F59PH.

First built for the California Department of Transportation(CDoT), the F59PHI has seen service in all four corners of America, (Mostly seen in California) as well as in the Pacific Northwest/Montreal area in Canada , and most recently Chicago's METRA Railroad.

In 1990, the State of California passed a bill that would result in massive funding for the state transportation systems. It also resulted in a separate, state funded system of regional Amtrak routes.

CDOT wanted a locomotive that was both reliable and attractive. They approached EMD, who responded with the lightweight, high-speed F59PHI locomotive.

Soon after, more orders arrived. Amtrak ordered 21 of these locomotives for their Pacific Sufliner service (separate from Amtrak California), and the North Carolina Department of Transportation also selected it as their primary motive power. West Coast Express (operated by TransLink) in Metro Vancouver, also selected it for starting up its service

Montreal's Agence de Metropolitaine de Transport bought 11 of these locomotives to go with their Bombardier Bi-Level coaches, which were just arriving.

The F59PHI was produced until 2001. It was taken off of EMD's lineup because it wasn't able to meet the EPA Tier 1 regulations.
