Description

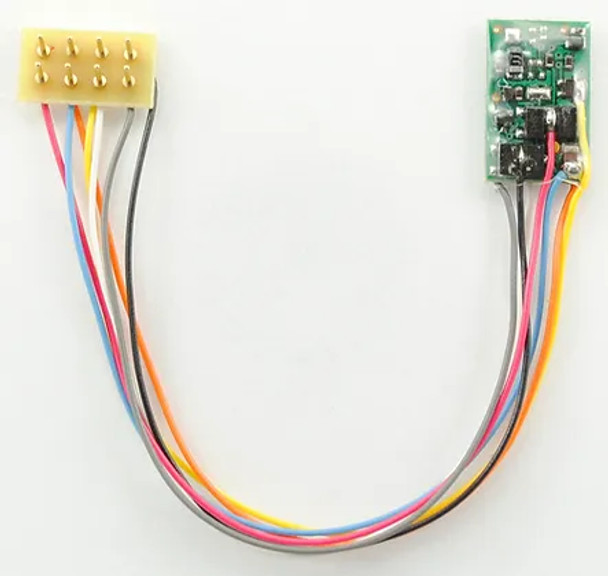

This M1 decoder (see M1 for more information) comes connected to a 3.5" (8.89 cm) long harness which is terminated with a 8-Pin NMRA plug rotated 180 degrees from the standard orientation. This allows the decoder to fit better in certain applications.
From M1 listing 1006
The M1 is a small form factor hard-wire decoder with 2 lighting functions for HO-scale and N-scale installations. This decoder is designed for installations where space is limited.
This decoder is also available with 8-pin NMRA plugs or Keep Alive® wires factory-installed. See the 'HO Scale' page for more variants.
- Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
- Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
- DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
- RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
- Variable Momentum: Allows you to make custom acceleration and deceleration curves.
- Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
- Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
- Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
- Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
- Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
- Airwire™ Compatible: Fully compatible with Airwire™ operation.
- User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
This M1 decoder (see M1 for more information) comes connected to a 3.5" (8.89 cm) long harness which is terminated with a 8-Pin NMRA plug rotated 90 degrees from the standard orientation. This allows the decoder to accommodate the UK's narrow gauge locomotives.
From M1 listing 1006
The M1 is a small form factor hard-wire decoder with 2 lighting functions for HO-scale and N-scale installations. This decoder is designed for installations where space is limited.
This decoder is also available with 8-pin NMRA plugs or Keep Alive® wires factory-installed. See the 'HO Scale' page for more variants.
- Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
- Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
- DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
- RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
- Variable Momentum: Allows you to make custom acceleration and deceleration curves.
- Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
- Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
- Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
- Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
- Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
- Airwire™ Compatible: Fully compatible with Airwire™ operation.
- User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
12V Outputs: 2
One Year Goof Proof Warranty
All decoders are covered by a one year goof proof warranty. Please return in a small box.You MUST register the failed decoder on our website at tcsdcc.com/warranty<br />Follow the instructions on the website before returning any decoders to TCS.
One Year Goof Proof Warranty
All decoders are covered by a one year goof proof warranty. Please return in a small box.You MUST register the failed decoder on our website at tcsdcc.com/warranty<br />Follow the instructions on the website before returning any decoders to TCS.
Details
Store Location: |
P# 303 / R3 #212 |
Scale: |
Multi Scale |
