Description

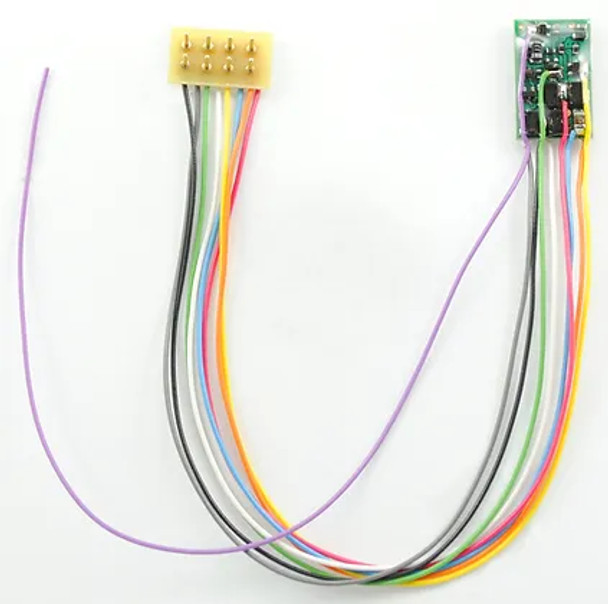

This M4 decoder (see M4 for more information) comes connected to a 5" (12.7 cm) long harness which is terminated with a 8-Pin NMRA plug.
From M4 listing 1011
- Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
- Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
- DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
- Variable Momentum: Allows you to make custom acceleration and deceleration curves.
- Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
- Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
- Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
- Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
- Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
- Airwire™ Compatible: Fully compatible with Airwire™ operation.
- User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
Dimensions (L x W x H): .567”x.359”x.135” or 14.4mm x 9.12mm x 3.43mm
Scale: HO Scale N Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 4
Function Rating: 100 mA
12V Outputs: 4
12V Outputs: 2
One Year Goof Proof Warranty
All decoders are covered by a one year goof proof warranty. Please return in a small box.You MUST register the failed decoder on our website at tcsdcc.com/warranty<br />Follow the instructions on the website before returning any decoders to TCS.
