Description

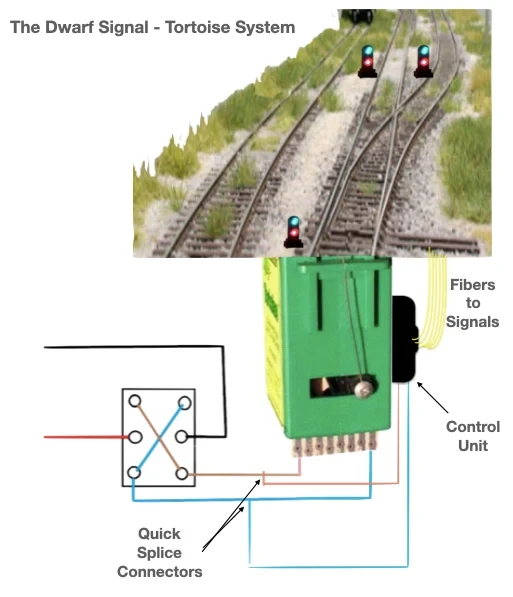

This system is designed to integrate with your stall motor switch machines, most notably the Tortoise, Walthers (depending on use of the Auxiliary control), Rapido Railcrew and Cobalt switch machines, without soldering wires, to show the position the switch is set to.
Customers have stated this is the simplest system to install in the market.

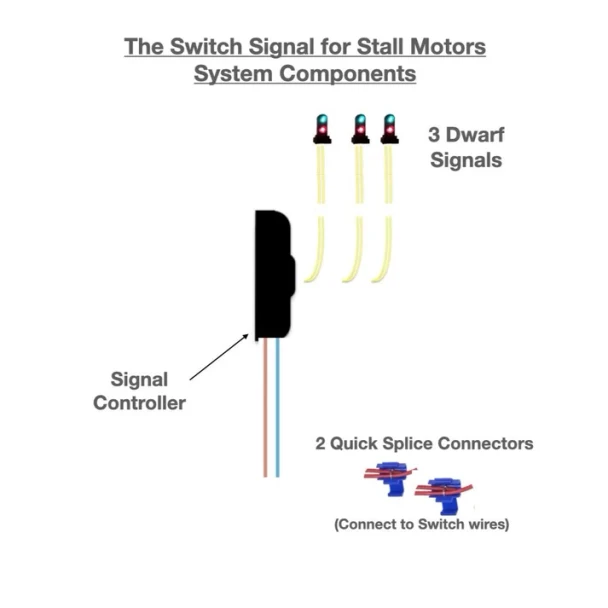

The complete system consists of:

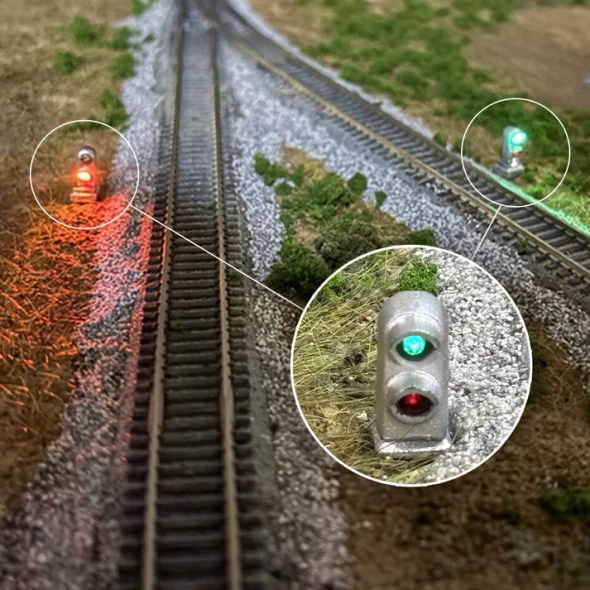

- 3 N Scale Dwarf signals with 2 pairs of ~2ft of 0.75mm fiber each
- 1 Stall Motor Signal Controller unit
- 2 Quick Splice Connectors - Suitcase style
Dimensions:
N Dwarf Signal: 12mm tall and 3.7mm wide.
No power supply is needed, it takes a small current from the supply to the switch machine.
This is especially helpful for operating sessions where it is very useful to see which way the dispatcher has a switch set.
Please note: We offer these dwarf signals in either BLACK or SILVER Housings. Please choose the color you want when ordering.
This will not work with the Coil switches such as Atlas, Kato or other such turnout controllers – we have different N scale controllers for these applications
Details
Store Location: |
P# 228 / Aisle 13B #5304 |
Scale: |
N Scale |
