Description

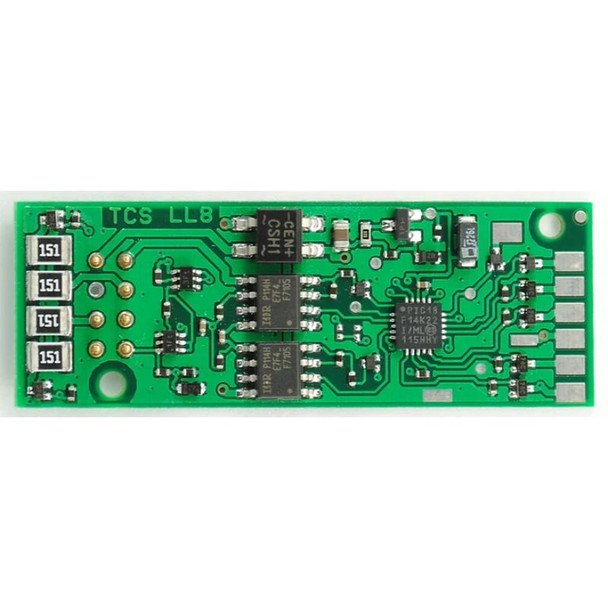

The LL8-LED is a 8-function direct-plug decoder designed specifically to meet the needs of LifeLike/Proto 2000 models. The LL8-LED can quickly be swapped for the existing DC board in your model, making the installation process fast and simple. The LL8-LED has a built-in circuit for LED's used for the forward and reverse headlights. The remaining 6 lighting functions on the LL8-LED are rated for 12V. IMPORTANT! If your model uses 1.5V incandescent lighting from the factory and you do not plan to upgrade to LED headlight(s) use the LL8.
- Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
- Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
- DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
- RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
- Variable Momentum: Allows you to make custom acceleration and deceleration curves.
- LED Support: This product does not require external resistors when connecting LED's.
- Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
- Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
- Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
- Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
- Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
- Airwire™ Compatible: Fully compatible with Airwire™ operation.
- User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
Details
Store Location: |
P# 303 / R3 #219 |
Customer Reviews
-
Great...
Installation was straight forward and simple with the G7 Proto 2000 locomotive I upgraded with this decoder, the DCCDecoder works well and is easy to program with my Digitrax system. I This DCC
-
DCC CONVERSION OF PROTO 2000
Decoder was used for a Proto 2000 GP7 DCC conversion including LED lighting swap out. Once the LED’s were swapped out, this 8 pin DCC decoder is a drop in replacement for the DC plug adapter. Pretty straight forward. Decoder is factory set with Rule 17 directional, dimming f/r headlights. Setting decoder locomotive number programming was straight forward using Digitrax system.
